    T Head Stepper Motor Accessories TR8 Full Tooth Threaded Lead Screw For Automated Equipment

    Ask Lasest Price
    Brand Name : WEIGU
    Model Number : T8
    Certification : RoHS
    Price : $6- $12 / Units
    Payment Terms : T/T,Western Union,MoneyGram
    Supply Ability : 100000Units per month
    Delivery Time : 15-30 work days
    • Product Details
    • Company Profile

    T Head Stepper Motor Accessories TR8 Full Tooth Threaded Lead Screw For Automated Equipment

    Wear-Resistant Threaded T Head Lead Screw & Nut for Automated Equipment

    Our trapezoidal screws meet national standard JB/T 2886-2008. Machined threaded raceways come in diameters φ2~14mm and leads 1~14mm, ensuring tight control over thread accuracy. They work reliably in precision instruments and automated gear, reducing jams, wear, and extending equipment life.​Versatile Materials for Every Need​
    Lead screws use YF45Mnr alloy steel (heat-treated to HRC58~62 for strength and durability). We also offer 45# steel or 304 stainless steel for harsh environments.​
    Nuts come in tin bronze, aluminum bronze, brass, cast iron, or stainless steel: Tin bronze nuts self-lubricate for low maintenance; stainless steel suits clean settings like food or medical fields.​
    Full Customization for Unique Needs​
    Beyond standard right-hand screws, we make left-hand or left-right combined threads for two-way gear (e.g., lifts, bending machines). Customize materials, sizes, threads, or finishes—small batches or special designs welcome. Contact us for a perfect fit.
    ​

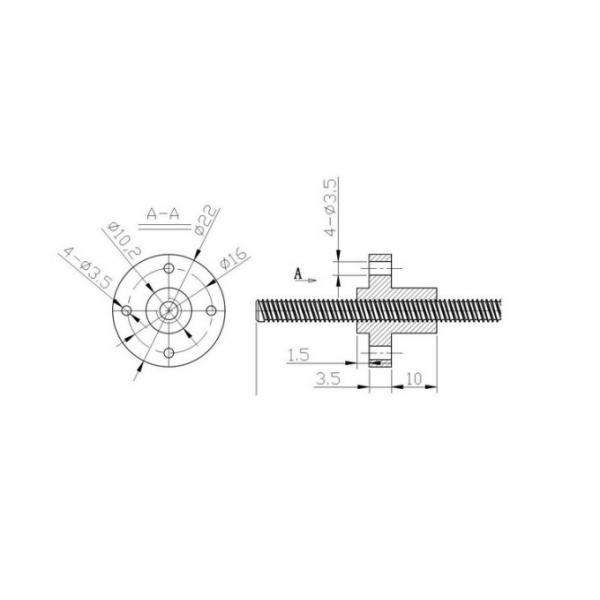

    Mechanical Dimension:MM


    Head Type Full Tooth TR8 Class A Material 8mm Lead Screw Nut / 3d Printer Lead Screw Nut Anti Corrosive 1

    Diameter 8MM Currently there are 6 pitches 1MM lead 1MM pitch 2MM lead 2MM 4MM 8MM 12MM 14mm
    Leading 1mm-14mm matching nut is all copper nut. Screw is stainless steel 304 wire
    There are six specifications for the lead of the screw: 1mm 2mm 4mm 8mm 12mm 14mm. The lead is the distance that the nut moves one turn. After you take the order, please note the lead you want. I will use the specifications of your remarks. Ship

    About the trapezoidal screw and nut related instructions
    Screw material45# 40Cr YF45MnV SUS304 SUS316 etc
    Nut materialPhosphor bronze,Zinc tin bronze,Aluminum zinc bronze
    Brass,Ductile iron,stainless steel ,Nylon
    Accuracy level7 level 8 level 9 level
    Processing methodCutting processing Roller extrusion
    Processing rangesingle head, multiple heads, various tooth types
    Sweeping directionleft-handed right-handed

    Srew Datasheet

    No.Spec modelOuter diaLeadThread No.Tooth distanceOuter dia
    1Tr3.5*1-N1-RH3.51113.53.475
    2Tr3.5*0.6096-N1-RH3.50.609610.60963.53.475
    3Tr3.5*2.4384-N2-RH3.52.438421.21923.53.475
    4Tr4-RH443.975
    5Tr5*1-N1-RH511154.975
    6Tr5*2-N2-RH522154.975
    7Tr5*4-N4-RH544154.975
    8Tr5*6-N6-RH566154.975
    9Tr6*1-N1-RH611165.975
    10Tr6*2-N2-RH622165.975
    11Tr6*4-N4-RH644165.975
    12Tr6*6-N6-RH666165.975
    13Tr6*12-N6-RH6126265.975
    14Tr6*12-N12-RH61212165.975
    15Tr8*1-N1-RH811187.975
    16Tr8*3-N2-RH8321.587.975
    17Tr8*2-N1-RH821287.975
    18Tr8*4-N2-RH842287.975
    19Tr8*8-N4-RH884287.975
    20Tr8*10-N5-RH8105287.975
    21Tr8*12-N6-RH8126287.975
    22Tr8*14-N7-RH8147287.975
    23Tr8*16-N -RH8287.975
    24Tr8*20-N -RH8287.975
    25Tr9*24-N24-RH92424198.975
    26Tr10*1-N1-RH10111109.975
    27Tr10*1-N2-RH101109.975
    28Tr10*2-N1-RH10212109.975
    29Tr10*3-N2-RH10321.5109.975
    30Tr10*4-N2-RH10422109.975
    31Tr10*8-N4-RH10842109.975
    32Tr10*10-N5-RH101052109.975
    33Tr10*12-N6-RH101262109.975
    34Tr10*14-N -RH102109.975
    35Tr10*20-N -RH102109.975
    36Tr12*2-N1-RH122121211.975
    37Tr12*3-N1-RH123131211.975
    38Tr12*8-N4-RH128421211.975
    39Tr12*4-N -RH1221211.975
    40Tr12*12-N -RH1221211.975
    41Tr12*10-N4-RH121042.51211.975
    42Tr12.7*12.7-N5-RH1212.752.541211.975
    43Tr14*3-N -RH1431413.975
    44Tr14*4-N -RH1441413.975
